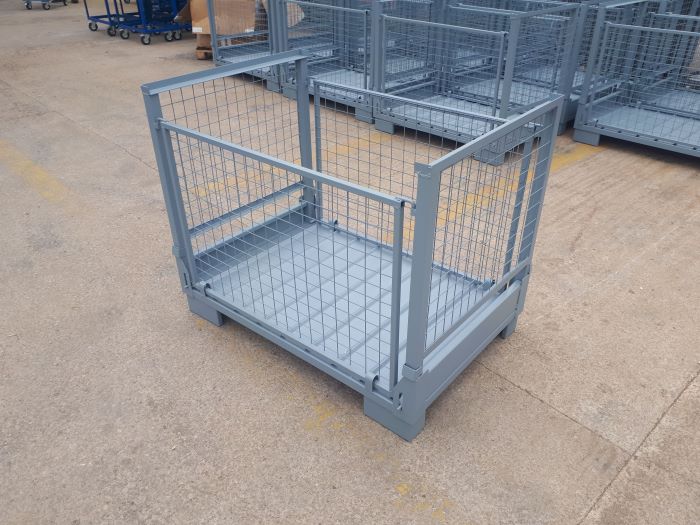

Foldable Steel cage pallets 4 side wire mesh 1200x800x970mm

Foldable wire mesh container- Foldable stillage pallet

Our foldable pallet boxes are engineered for robust, efficient storage and transport—even in challenging environments. Designed with a continuous base made from high-quality rolled profiles and an embossed sheet metal floor, these boxes ensure safety and durability. Key features include:

• Additional Standard Models:

  • CVC01: 820×620×630 mm – Capacity: 700 kg
  • CVC02: 1020×620×630 mm – Capacity: 700 kg
  • CVC03: 1200×800×470 mm – Capacity: 1000 kg
  • CVC04: 1200×800×970 mm – Capacity: 1000 kg
  • CVC05: 1200×1000×970 mm – Capacity: 1000 kg

• Anti-Tip Design:
  A specially designed anti-tip base allows for safe unloading using rotating fork systems.

• Construction:

  • Continuous base in embossed sheet metal.
  •  Foldable Walls made of welded mesh with 50×50 mm openings.
  • Rolled profile structure for added strength.

• Handling:

  • Integrated legs adapted for handling with forklifts or pallet jacks.
  • Optional perforated corners facilitate handling with lifting systems.

• Finish:
  Electrostatic liquid painting is applied for superior corrosion resistance, available in blue, grey, green (optional), or any custom color upon request.

• Specifications:
  Starting dimensions of 1000×600×600 mm with load capacities up to 1000 kg.
  Ideal for industrial use, particularly for outdoor storage or high-humidity environments, ensuring a cost-effective and efficient operation.

Metallic Pallet Box with Welded Mesh Walls

We also offer foldable wire mesh pallet boxes featuring welded mesh walls, available in two base options:

• Base Options:

  • Standard embossed sheet metal (1.5/2 mm thick).
  • Optional 25 mm wooden base.

• Construction & Handling:

  • Walls are constructed from welded mesh (50×50 mm openings).
  • Built with laminated profiles, these boxes can be handled with a side shifter or forklift.
  • Stackable up to 5 levels, with each level supporting up to 1500 kg.

• Additional Features:

  • Fitted with a lateral shutter.
  • Protected with an anti-corrosive primer and a final paint coat; thermal zinc coating is available on request.

Customized Solutions for Specialized Applications

Our company is fully equipped to design and manufacture custom equipment and returnable packaging solutions tailored to your specific needs—whether for general goods handling or specialized transport within the automotive industry.

Additional product variants include:

• Foldable Pallet Box with Laminated and Embossed Profiles:

  • Walls: Welded mesh with 50×50 mm openings.
  • Base: Standard embossed sheet metal (2 mm) or optional 25 mm wood.
  • Structure: Laminated and embossed profiles (40×40×4 mm).
  • Handling: Suitable for forklifts, with a maximum stacking configuration of 5 levels (each level supporting up to 1500 kg).
  • Finish: Two layers of anti-corrosive primer and one final paint coat; thermal zinc coating is available on request.

• Standard Dimensional Range for Automotive Applications:
  Examples of our standard metallic pallet boxes include:

  • Box Model (1200×800×970 mm):
    Welded mesh walls (50×50 mm openings, 3 mm thickness), embossed sheet metal floor (1.5/2 mm), lateral shutter, and a laminated profile structure.
    Suitable for handling with either a forklift or side shifter, with 5-stack configurations and each level supporting up to 1000 kg.

  •

Contact us today to discuss how our customized pallet boxes and transport/storage solutions can be adapted to meet your specific operational requirements
