Heavy Duty Pallet Racking Protectors: Ensuring Warehouse Safety and Efficiency

Overview

In modern warehouse and industrial environments, safety is paramount. Heavy duty pallet racking protectors are designed to safeguard critical infrastructure—such as pallet uprights, end frames, machine guards, and mezzanine support columns—from the impacts of moving heavy machinery, forklifts, and other vehicles. These protectors not only prevent structural damage but also play a vital role in maintaining a secure, productive, and cost-effective workspace.

Key Features and Benefits

• Collision Mitigation:
  Designed to absorb and deflect impacts, these protectors prevent costly damage to racking systems, storage columns, and shelving units. By shielding vulnerable areas, they minimize repair expenses and downtime.

• Robust Construction:
  Constructed with metal plates ranging from 5mm to 6mm in thickness, these protectors offer a solid barrier against impacts. The heavy-duty materials ensure long-term durability even in high-traffic zones.

• Enhanced Visibility:
  Featuring a distinctive yellow and black striped pattern, these protectors meet safety guidelines (ZH1/428 and DIN4844), ensuring they are easily visible under low light conditions and in the reflective view of forklift mirrors. This high-visibility design alerts operators to the presence of the protective barriers, reducing the risk of accidental collisions.

• Versatile Designs:

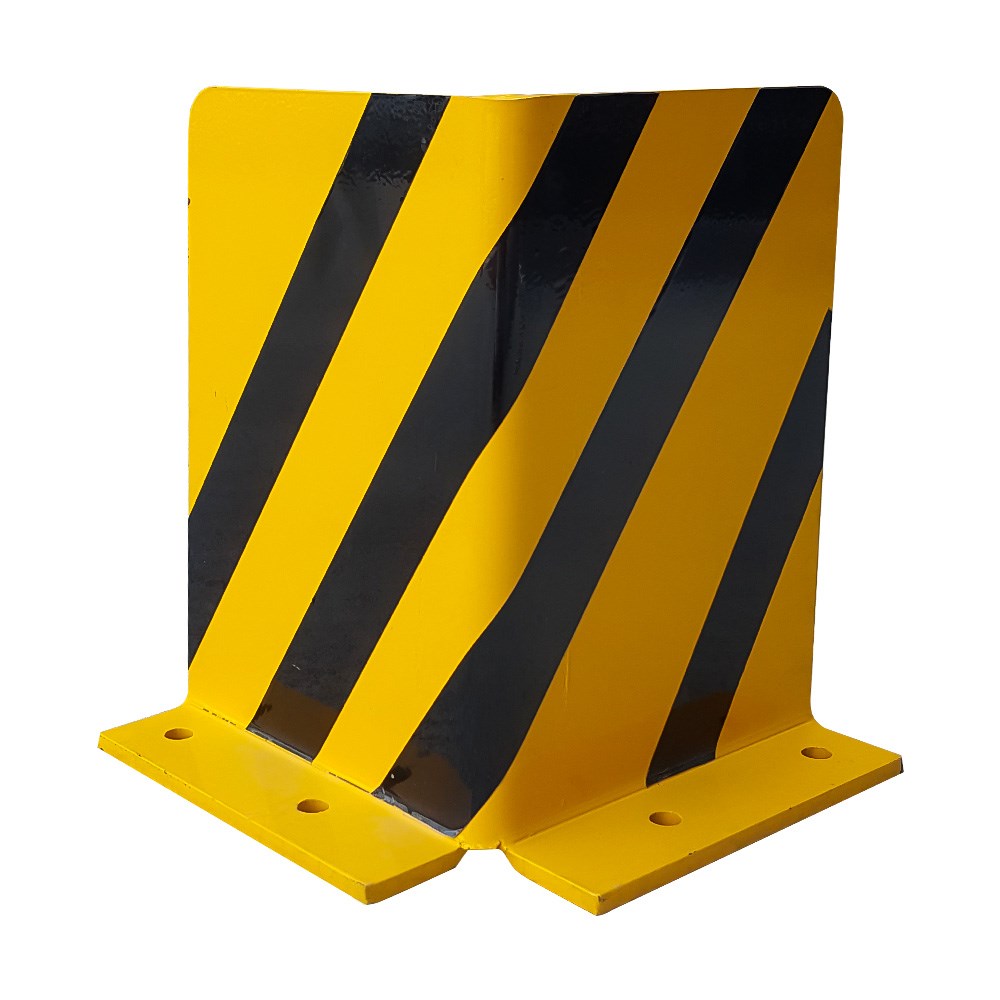

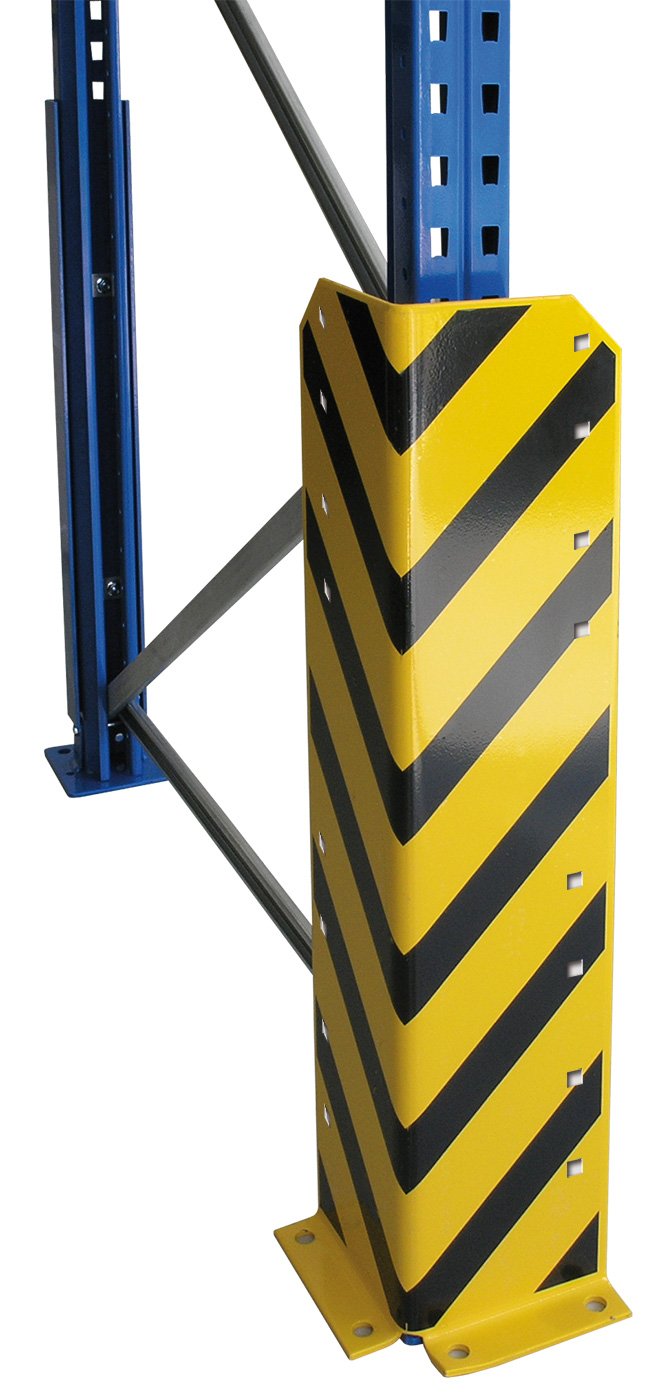

  • Right-Angle Protectors: Available in various heights (400mm, 800mm, 1200mm) and secured using four anchorage bolts, these protectors are ideal for standard applications where simplicity and effectiveness are required.
  • ‘U’ Shaped Protectors: Typically offered at a height of 400mm and secured with six bolts (two per side), these provide an even more robust safeguard around critical columns and equipment.

Technical Specifications

• Dimensions and Materials:

  • Width/Depth: 160mm, ensuring full coverage of the targeted area.
  • Right-Angle Protectors:
    • 400mm Height – Available with 5mm or 6mm thickness.
    • 800mm Height – Typically manufactured with 6mm thickness.
    • 1200mm Height – Constructed with 6mm thickness for maximum protection.
  • ‘U’ Shaped Protectors:
    • Standard height of 400mm – Available with options of 5mm or 6mm thickness.

• Installation Details:
  The protectors are anchored to the ground using high-strength bolts, ensuring a stable and secure fit even under repeated impacts. The ease of installation and removal allows for efficient maintenance and quick replacement if needed.

Applications

• Warehouse and Storage Facilities:
  Protects pallet racking systems and storage columns from forklift collisions and accidental impacts, ensuring that inventory and equipment remain secure.

• Industrial Environments:
  Shields critical machine guards, support columns, and mezzanine structures, reducing the risk of structural failure and ensuring operational continuity.

• Logistics and Distribution Centers:
  Enhances safety by preventing damage to high-value assets, minimizing repair costs and improving overall workflow efficiency.

• General Industrial Safety:
  Beyond warehouses, these protectors are useful in any setting where vehicular movement occurs in close proximity to fixed structures, contributing to a safer work environment.

Cost-Effective Investment in Safety

Investing in heavy duty pallet racking protectors not only enhances workplace safety but also offers significant cost savings. By preventing frequent damage to racks and other structural components, businesses can avoid the high costs associated with repairs and replacements. Additionally, the robust design and ease of installation contribute to lower maintenance costs over time, making these protectors a smart, long-term investment.

Conclusion

Heavy duty pallet racking protectors provide a critical layer of defense in environments where forklifts and heavy machinery operate in close quarters with essential storage and structural elements. With their robust construction, high visibility, and versatile design options, these protectors are an indispensable asset in reducing downtime, preventing costly damages, and ensuring the overall safety and efficiency of industrial operations.

By integrating these advanced safety solutions, warehouses and industrial facilities can maintain a safer work environment, enhance operational productivity, and protect valuable assets from unexpected impacts.
