Wall Mounted Pipe/Cable Guard – Metal Fabrication in UAE

Introduction

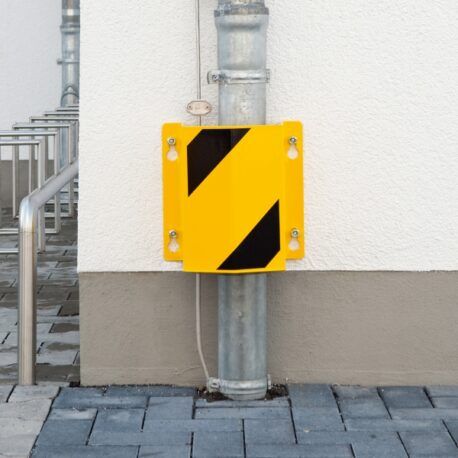

The Wall Mounted Pipe/Cable Guard is a precision-engineered protective solution designed to safeguard exposed downpipes, cables, and cable runs against accidental impacts from forklifts, vehicles, and other machinery. With its robust construction and easy installation features, this guard is ideal for a range of industrial and commercial applications, ensuring the longevity of vital infrastructure while minimizing costly repairs.

Design and Construction

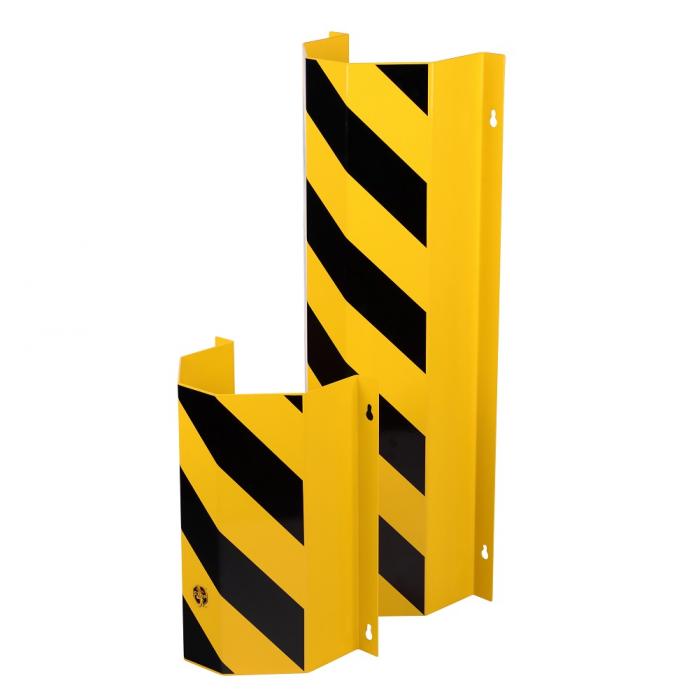

• Robust U-Shaped Profile:
  Crafted from 4mm thick mild steel, the U-shaped design offers exceptional strength and durability, providing reliable protection for both pipes and cables. The structure is engineered to absorb impact forces effectively, reducing the risk of damage during accidental collisions.

• High-Visibility Markings:
  For internal applications, the guard features a striking powder-coated yellow finish accented with black diagonal stripes. This high-visibility color scheme meets safety standards and ensures that the guard is easily seen even under low light conditions. For external or dual-use scenarios, a hot-dip galvanized finish is available, offering excellent corrosion resistance.

• Keyhole Installation System:
  The Wall Mounted Pipe/Cable Guard incorporates four keyhole slots that facilitate a simple and secure installation using four bolts (sold separately). This design not only ensures a firm attachment to the wall but also allows for quick removal when maintenance access is required.

Technical Specifications of : Wall Mounted Pipe/Cable Guard

• Heights Available:

  • 300mm
  • 500mm
  • 800mm

• Dimensions:

  • Width: 200 x 220mm
  • Overall Width (including fixing holes): 292mm
  • Wall Thickness: 4mm / 5mm

• Material:

  • Mild Steel

• Finishes:

  • Internal Use: Powder-coated in yellow optional with black bands
  • External/Internal Use: Hot Dip Galvanized bare finish

• Installation:

  • Simple monting with 4 bolts (fixings sold separately) into pre-drilled keyhole slots.

Applications
The Wall Mounted Pipe/Cable Guard is suitable for a variety of settings, including:

• Manufacturing Sites and Warehouses:
  Protect sensitive infrastructure such as fiber optic cable bundles, downpipes, and cable runs from abrasion and impact damage.
• Logistics Depots and Commercial Buildings:
  Enhance safety around exposed cables and pipes, preventing potential hazards caused by vehicle collisions.
• Utility Sites and Chemical Plants:
  Offer robust protection in environments where both internal and external conditions require durable, corrosion-resistant solutions.
• Car Parks and Public Areas:
  Prevent accidental damage to exposed infrastructure by providing a clearly visible barrier.

Benefits and Value Proposition

• Enhanced Protection:
  The robust steel construction and well-engineered design ensure maximum protection against accidental impacts, thereby reducing the risk of costly repairs.
• Ease of Installation and Maintenance:
  The keyhole slot design simplifies the installation process, and the guard can be easily removed when maintenance is necessary.
• Versatility:
  Suitable for both internal and external applications, this guard offers flexibility to meet various environmental conditions and safety requirements.
• Cost-Efficiency:
  By preventing damage to critical infrastructure, the Wall Mounted Pipe/Cable Guard acts as a cost-saving investment, reducing downtime and repair expenses.

Conclusion
The Wall Mounted Pipe/Cable Guard is an essential component for any facility where exposed pipes or cables are at risk of accidental damage made in . Its robust construction, high-visibility finish, and straightforward installation make it a dependable solution for protecting your assets in warehouses, manufacturing sites, logistics depots, and more. With this guard in place, you can ensure enhanced safety, maintain operational efficiency, and safeguard your investments against everyday wear and tear.
